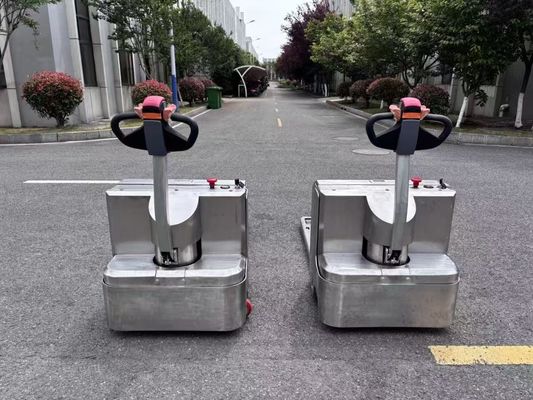

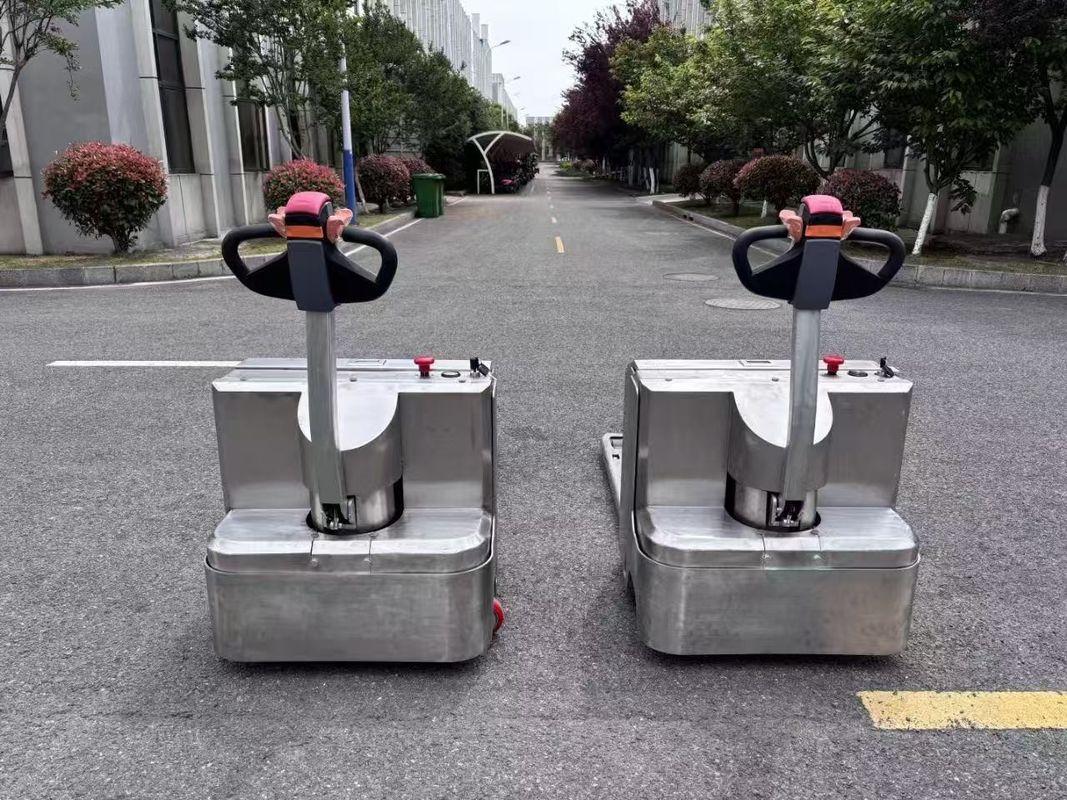

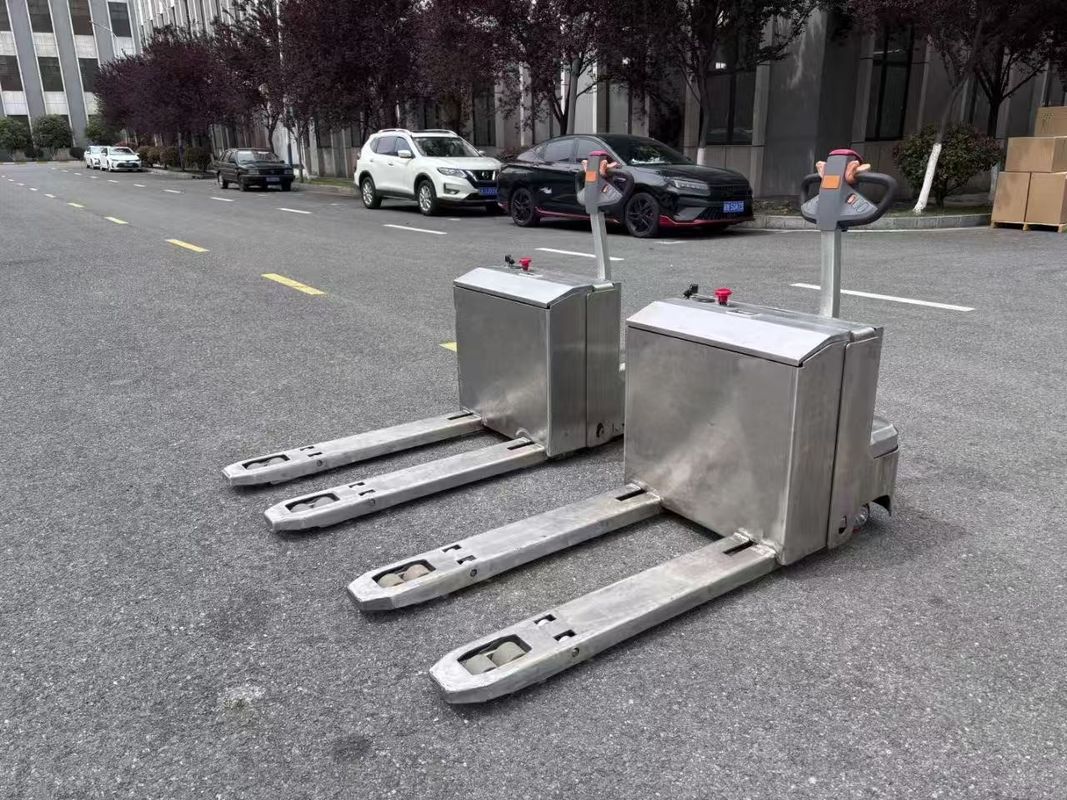

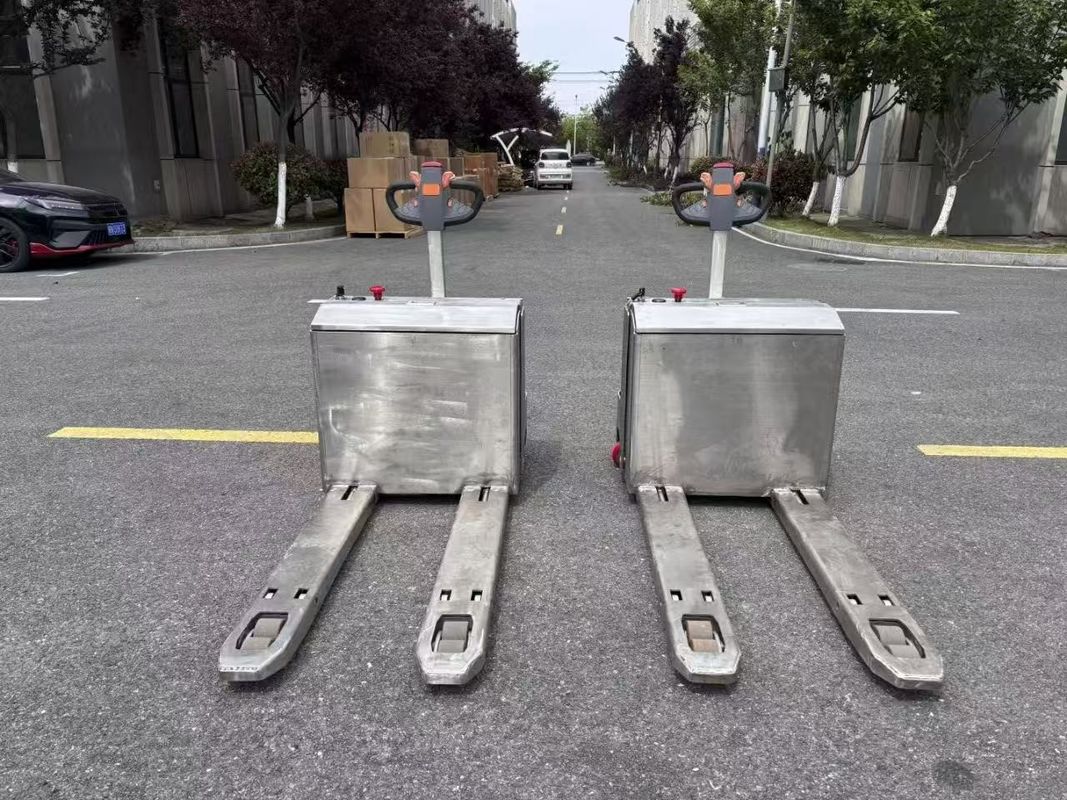

Stainless steel pallet truck
Uniform load capacity: 3000kg
Fork length: 1150mm
Fork width: 685mm
Increase travel distance: 120mm
Battery capacity: 24V210AH
Mechanical steering walking type
Body material: SUS304
Communication driven Weibo hydraulic pump
Advantage:
| Name | Electric pallet truck | |
| Model | CBD120 | |
| Load | kg | 12000 |
| Load center | mm | 600 |
| Min. ground clearance | mm | 140 |
| Max. ground clearance | mm | 230 |
| Control form | Side standing | |
| Vehicle width | mm | 1250 |
| Total length of vehicle body | mm | 2220 |
| Fork outer width | mm | 800 |
| Maximum ground clearance of steering wheel | mm | 1275 |
| Turning radius | mm | 2015 |
| Fork size | mm | 3450*280 |
| Right angle stacking channel | mm | 2720 (pallet size 1000*1000) |
| Traveling speed (loaded/ unloaded) | km/h | 5/ 6 |
| Lifting motor (S3-15%) | kw | 4.5 |
| Travel motor (S2-60min) | kw | 4.0 |
| Steering motor | kw | 0.5 |
| Braking form | Electromagnetic braking | |
| Steering form | Electronic steering | |
| Controller | CURTIS | |
| Body weight | kg | 1700 |
| Battery weight | kg | 500 |
| Climbing gradient (full load/ no load) | % | 3/8 |
| Battery capacity | v/ah | 48/400 |
| Charger | v/ah | 48/50 |
| Number of tires, front/ rear (X= drive wheel) | 4/1X+8 | |
| Drive wheel | mm | Φ343 *135 |
| Bearing wheel | mm | Φ125*100 |
| Auxiliary wheel | mm | Φ150*50 |
| Lifting speed (full load/ no load) | mm/s | 40/54 |
| Falling speed (full load/ no load) | mm/s | 55/45 |
| Tire type | Polyurethane | |
| Battery replacement method | Side pull type |
FAQ:
Q1: Are you electric forklift factory?
A1: Yes, we are the professional manufacturer of electric forklift with rich experience for more than 5 years.
Q2: How about the delivery time?
A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM or ODM service?
A4: Yes, we can .
